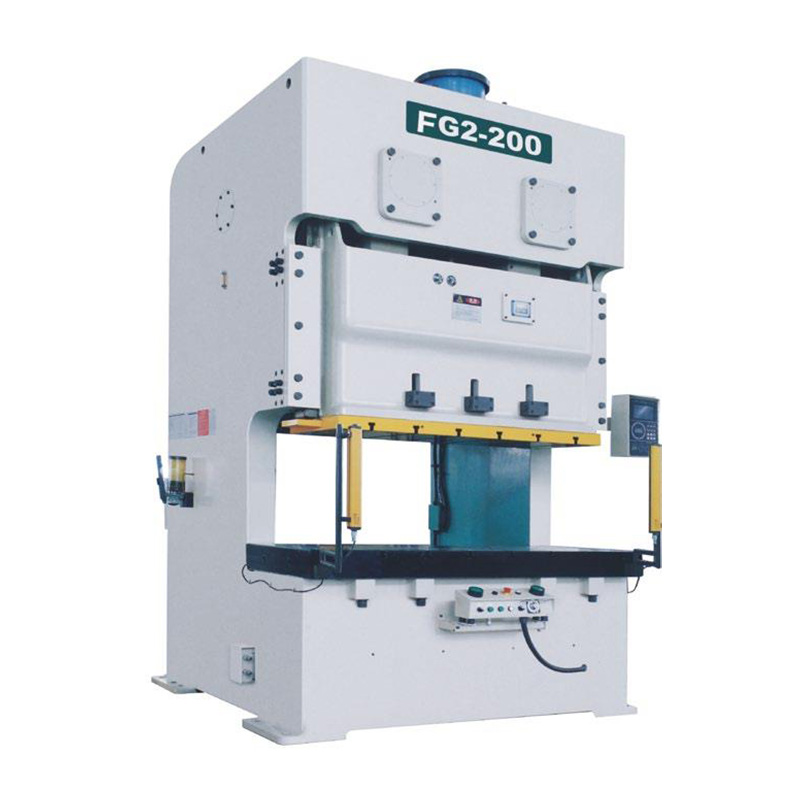

FG2 Series
Specification |
|
FG2-110N |
FG2-160N |
FG2-200N |
FG2-250N |
||||
Model |
|
V |
H |
V |
H |
V |
H |
V |
H |
Capacity |
Ton |
110 |
160 |
200 |
250 |
||||
Rated tonnage point |
mm |
5 |
3 |
6 |
3 |
6 |
3 |
7 |
3.5 |
Stable speed |
s.p.m |
35-65 |
50-100 |
30-55 |
40-85 |
25-45 |
35-70 |
20-35 |
30-60 |
Stroke |
mm |
180 |
110 |
200 |
130 |
250 |
150 |
280 |
170 |
Die height |
mm |
400 |
435 |
450 |
485 |
500 |
550 |
550 |
605 |
Slide adjustment |
mm |
100 |
100 |
120 |
120 |
||||
Bolster area |
mm |
1800x650x130 |
2000x760x150 |
2400x840x170 |
2700x900x170 |
||||
Slide area |
mm |
1400x500x70 |
1600x550x70 |
1850x650x95 |
2100x700x95 |
||||
Main motor |
kw/xp |
VS11X4 |
VS15X4 |
VS18. 5X4 |
VS22X4 |
||||
Air pressure |
kg/cm2 |
6 |
6 |
6 |
6 |
||||
Presses precision |
|
GB/JIS 1 class |
|||||||
Presses dimension |
mm |
1745x2000x3059 |
1940x2200x3709 |
2235x2620x3849 |
2545x3000x4304 |
||||
Capacity |
Ton |
14.2 |
20 |
27.5 |
45.5 |
||||
Die cushion work part dimension |
mm2 |
350x235x2 group |
350x235x2 group |
350x235x2 group |
350x235x2 group |
Specification |
FG2-110N |
FG2-160N |
FG2-200N |
FG2-250N |
|

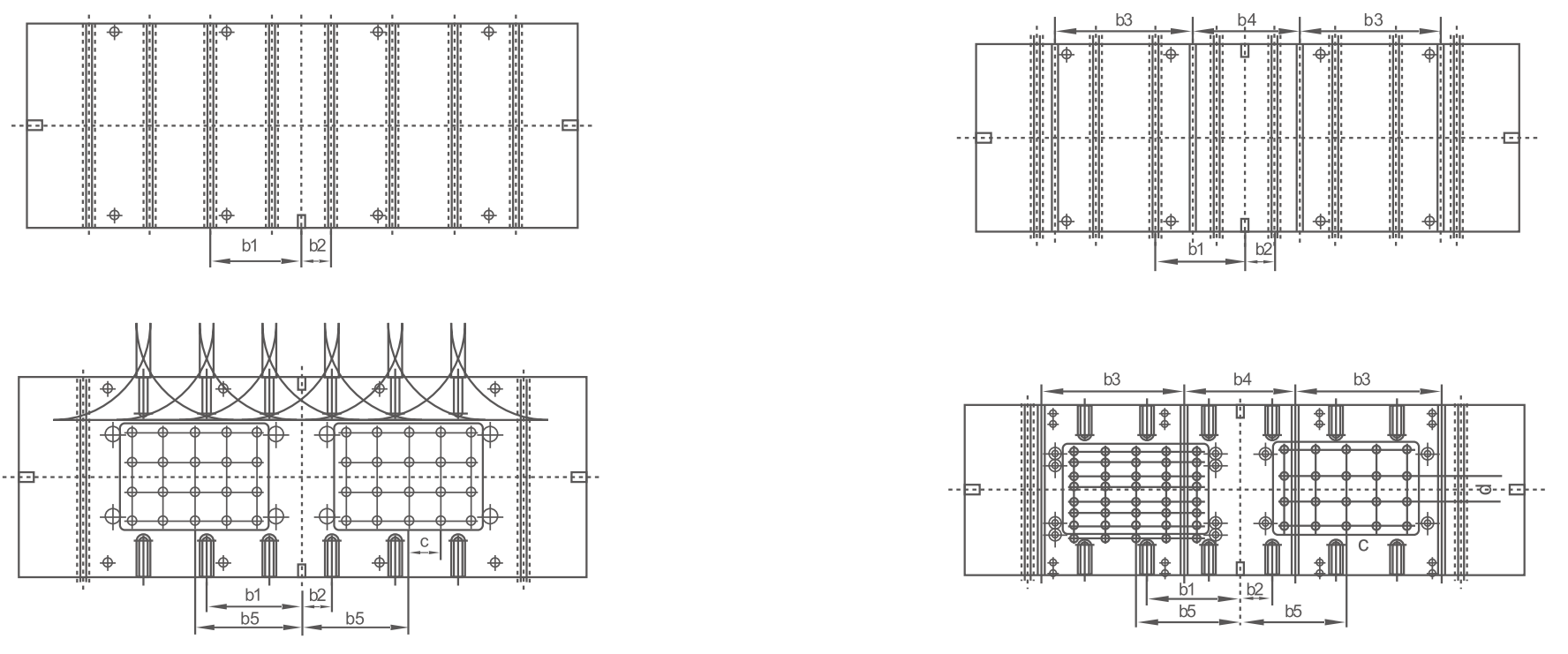

Workbench area (left and right X front and rear) |
1800x650 |
2000x760 |
2400x840 |
2700x900 |
|
T-groove type fan |
A |
A |
A |
A |
|
Number of T-shaped slots |
6 |
8 |
8 |
8 |
|
b1 |
375 |
375 |
375 |
450 |
|
b2 |
125 |
125 |
125 |
150 |
|
b3 |
320 |
520 |
710 |
680 |
|
b4 |
430 |
520 |
520 |
540 |
|
b5 |
255 |
415 |
455 |
510 |
|
Circular two, four |
Number of mold pad pin holes X hole diameter |
30xФ20+0.5 +0.1 |
48xФ20 +0.5 +0.1 |
48xФ20 +0.5 +0.1 |
70xФ20 +0.5 +0.1 |
Pin hole distance cxd |
75x100 |
75x75 |
100x100 |
100x100 |
Slide
Specification |
FG2-110N |
FG2-160N |
FG2-200N |
FG2-250N |
Slide plate Area(LRxFB) |
1400x500 |
1600x550 |
1850x650 |
2100x700 |
T-groove type |
A |
A |
B |
B |
Number of T-channels |
4 |
6 |
6 |
6 |
b6 |
375 |
375 |
375 |
450 |
b7 |
125 |
125 |
125 |
150 |
Model |
A |
B |
a |
22 |
28 |
b |
37 |
48 |
c |
24 |
28 |
d |
16 |
20 |
R |
1 |
1 |
FG2 Series
Specification |
FG2-110N |
FG2- |
160N |
FG2-200N |
FG2-250N |
|||
Model |
V |
H |
V |
H |
V |
H |
V |
H |
AA |
2000 |
2200 |
2620 |
3000 |
||||
AB |
1900 |
2080 |
2460 |
2800 |
||||
AC |
1360 |
1520 |
1820 |
2200 |
||||
AD |
1800 |
2000 |
2400 |
2700 |
||||
AE |
1510 |
1660 |
1990 |
2220 |
||||
AF |
1400 |
1600 |
1850 |
2100 |
||||
AG |
1780 |
1980 |
2320 |
2590 |
||||
BA |
1745 |
1940 |
2235 |
2545 |
||||
BB |
1295 |
1380 |
1885 |
2195 |
||||
BC |
650 |
760 |
840 |
900 |
||||
BD |
330 |
385 |
425 |
455 |
||||
BE |
500 |
550 |
650 |
700 |
||||
HA |
(630) |
(730) |
(790) |
(820) |
||||
HB |
830 |
865 |
990 |
1025 |
1070 |
1120 |
1100 |
1155 |
HC |
400 |
435 |
450 |
485 |
500 |
550 |
550 |
605 |
HD |
180 |
110 |
200 |
130 |
250 |
150 |
280 |
170 |
HE |
3059 |
3709 |
3849 |
4304 |
||||
HF |
1240 |
1440 |
1570 |
1680 |
||||
Oh |
035 |
047 |
054 |
054 |

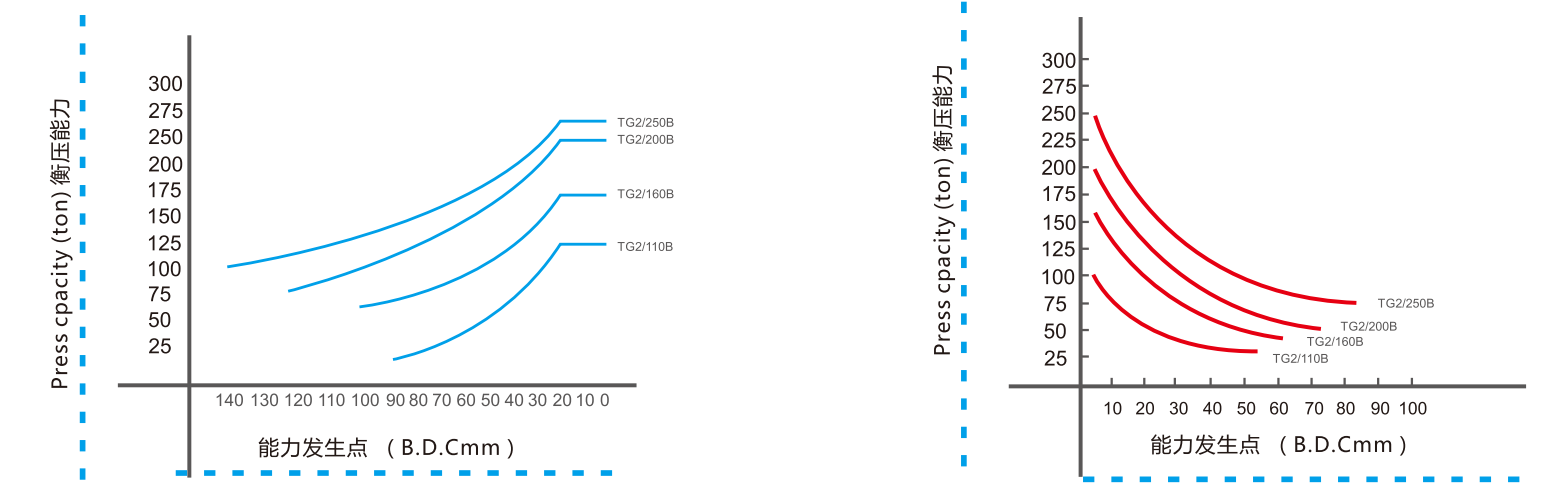

Tonnage & energy.stroke Curve

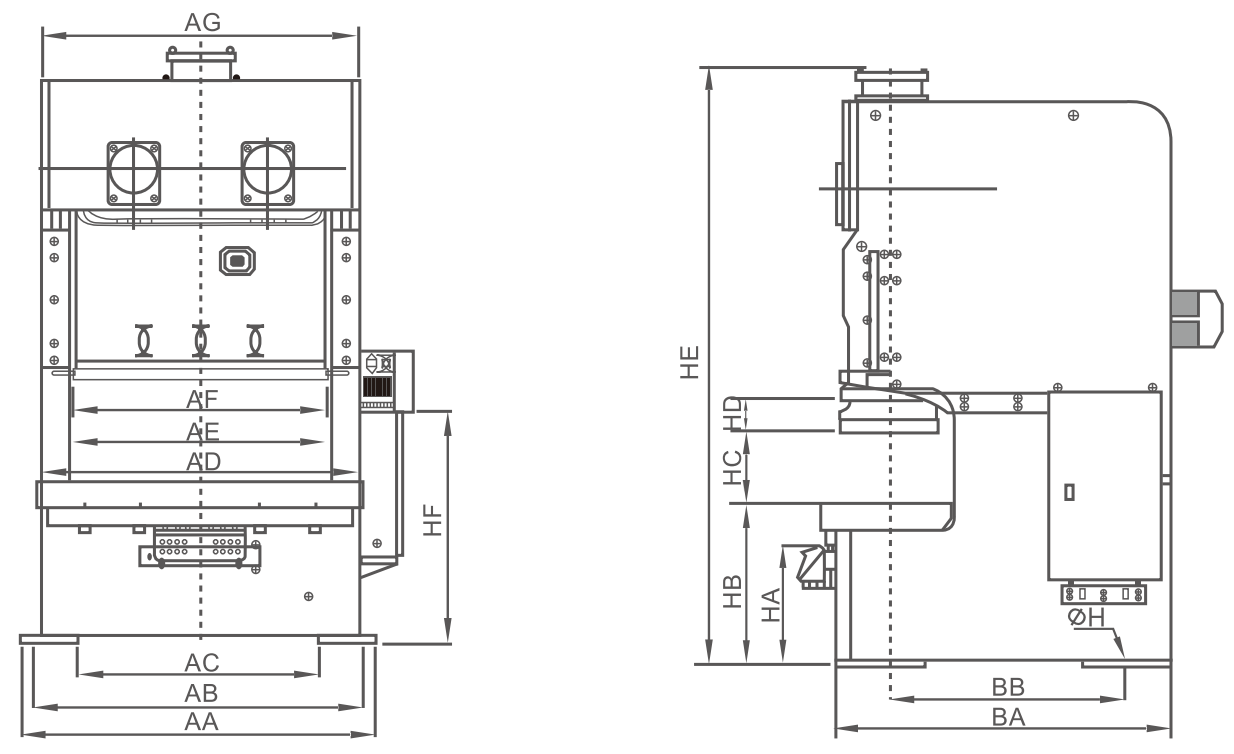

Machine Dimensions
