FC-C Type Three Round Guide Column High Speed Punch

Home / Product / FC-C Type Three Round Guide Column High Speed Punch / FC-80 Ton 15HP Column High Speed Punch
  • FC-80 Ton 15HP Column High Speed Punch
  • FC-80 Ton 15HP Column High Speed Punch

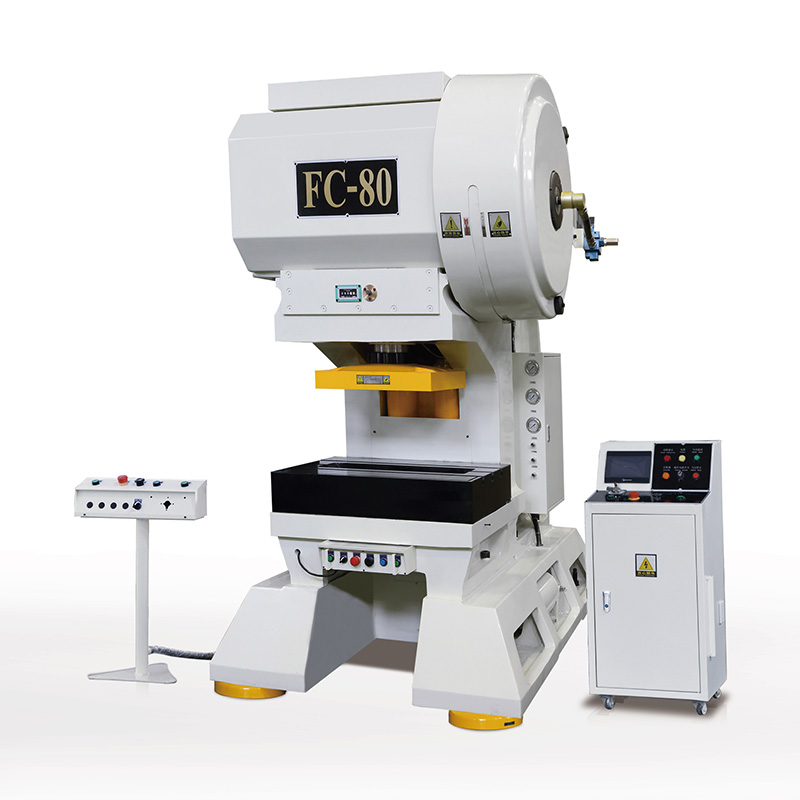

FC-80 Ton 15HP Column High Speed Punch

Contact Us
PREV：FC-70 Ton 15HP Column High Speed Punch
NEXT：FC-90 Ton 20HP Coulumn High Speed Punching
  • Description
  • Feedback

  • Model

    80CP/80CF

    Capacity

    80Ton

    Stroke of slide

    30 40 50

    S.P.M

    100-500 100-450 100-400

    Die-Height

    360mm 355mm 350mm

    Boister area

    1000mm*600mm

    Slide area

    580mm*450mm

    Slide adjustment

    30mm

    Bed opemng

    800(upper）*600（below）*180（wide）mm

    Motor

    15HP

    Net weight

    12000Kg

    Lubrication

    Forceful Automation

    Speed control

    Lnvertes

    Clutch&8rake

    Air&Friction

    Auto top stop

    Standard

    Vibration system

    Option

Related Products

FLGK Intelligent Technology Co., Ltd.

Our company is China FC-80 Ton 15HP Column High Speed Punch suppliers and Custom FC-80 Ton 15HP Column High Speed Punch company.And it was established in 2001, the headquarter is in Cixi city, Ningbo, China. In 2017, Ningbo FLGK Intelligent Technology Co., Ltd. was established. In 2020, the company moved to a new factory, covering an area of 45 mu. Adhering to the business philosophy of "quality first, service first, integrity management, giving back to the society", after years of development and growth, we have set up offices in Guangdong, Chongqing, Shandong, Jiangsu, and Zhejiang, now covering a total area of more than 30,000 square meters, becoming an expert in precision and high-speed punch manufacturing.
FLGK Intelligent Technology Co., Ltd.

Certificate Of Honor

News

Industry Knowledge

As the name suggests, The 15HP (horsepower) Column High Speed Punch is designed for high-speed operations. It can perform punching operations at significantly faster rates compared to standard punch presses.High-speed punches are capable of reaching a higher number of strokes per minute (SPM), typically in the range of 150 SPM and above.The high speed of these machines allows for rapid production, making them ideal for applications where time is of the essence, such as high-volume manufacturing.

High-speed punches are engineered for specific applications that require high-speed and high-precision punching. They are well-suited for tasks such as perforating, blanking, and forming in materials like sheet metal.These machines often feature advanced control systems, quick tool changeovers, and precise tool alignment, making them ideal for complex, high-speed applications.

High-speed punching is commonly used in various industries and applications where rapid and precise hole punching, shaping, or perforating of materials is required. Some of the primary industries and applications include:
1. Sheet Metal Fabrication: High-speed punching is extensively used in sheet metal fabrication for producing components such as electrical enclosures, metal cabinets, brackets, and panels.
2. Automotive: The automotive industry employs high-speed punching for manufacturing vehicle components, including chassis parts, brackets, and body panels.
3. Electronics: High-speed punching is used to create openings, holes, and mounting features in electrical enclosures, PCBs (printed circuit boards), and electronic casings.
4. Aerospace: In aerospace manufacturing, high-speed punches are used to produce aircraft components, including brackets, lightweight panels, and structural elements.
5. Appliances: The manufacturing of household appliances often involves high-speed punching for items like washing machine components, refrigerator panels, and air conditioner parts.
6. Construction: The construction industry utilizes high-speed punching for creating various structural and architectural components, such as steel beams, trusses, and joist hangers.
7. Telecommunications: High-speed punching is used for producing equipment cabinets, rack-mounting systems, and enclosures for the telecommunications industry.
8. Furniture: Furniture manufacturing benefits from high-speed punching for creating brackets, connectors, and decorative elements in metal or wooden furniture.
